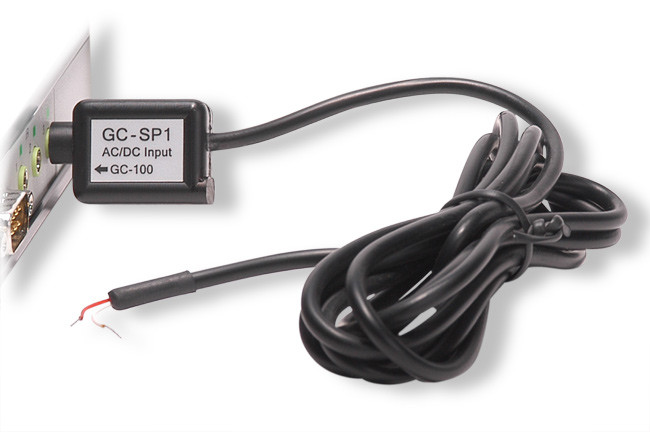

GC-SP1

AC/DC Voltage Sensor
- This product detects the presence of an AC or DC voltage. An output
indication is provided for DC voltages = ± 1.5V and AC voltages
= ± 1.5V p-p for frequencies = 10Hz. Max. input voltage is ± 24V
- Ideal for detecting high voltage via AC wall adapters, phone ringing,
or controller logic levels
- Power supply is not required when used w/ the GC-100
- Optically isolated and clamped by transient voltage suppressor
for circuit isolation and protection
- Cable/Connector - 1,8 m, 3.5mm stereo plug
