DWR Series

Wall Mount Sectional Cabinet with Enhanced Cable Management

Specify a DWR wall cabinet when floor space is an issue. This pivoting, sectional wall cabinet is ideal for larger systems in both secured and non-secured areas.
Structural Features:

  • Tool-Free Quick-Mount™ system for easy, one-person mounting of the center section to the backpan
    on the jobsite
  • Zero Clearance Latch option allows side-by-side or corner mounting
  • Welded construction provides up to 140 kg weight capacity, depending on model
  • Reversible padlockable center section is keyed differently from optional front door for security
  • Finished in a durable black textured powder coat
 DWR

 Wall Mount Sectional Cabinet

430 mm deep
(380 mm usable)
Art. #		 560 mm deep
(510 mm usable)
Art. #		 660 mm deep
(610 mm usable)
Art. #		 820mm deep
(760 mm usable)
Art. #		 usable
height		 weight
capacity		 overall-
height
DWR-10-17 DWR-10-22 –  – 445 mm
(10 HE)		 90 kg 620 mm
DWR-12-17 DWR-12-22 DWR-12-26 DWR-12-32 530 mm
(12 HE)		 90 kg 710 mm
DWR-16-17 DWR-16-22 – – 710 mm
(16 HE)		 90 kg 890 mm
DWR-18-17 DWR-18-22 DWR-18-26 DWR-18-32 800 mm
(18 HE)		 113 kg 980 mm
DWR-21-17 DWR-21-22 – – 930 mm
(21 HE)		 113 kg 1100 mm
DWR-24-17 DWR-24-22 DWR-24-26 DWR-24-32 1070 mm
(24 HE)		 140 kg 1245 mm
DWR-35-17 DWR-35-22 DWR-35-26 – 1560 mm
(35 HE)		 140 kg 1730 mm



Documents

  Product Information technical drawing

Accessories

Front doors
Fronttür PG Fronttür
Front door
solid		 Plexi-
Front door		 Front door vented
with standard Perf
vented		 front door vented
with Perf
vented		 fits on
Art. #
FD-10 PFD-10 VFD-10 LVFD-10 DWR-10-17/ -22
FD-12 PFD-12 VFD-12 LVFD-12 DWR-12-17/ -22/ -26/ -32
FD-16 PFD-16 VFD-16 LVFD-16 DWR-16-17/ -22
FD-18 PFD-18 VFD-18 LVFD-18 DWR-18-17/ -22/ -26/ -32
FD-21 PFD-21 VFD-21 LVFD-21 DWR-21-17/ -22
FD-24 PFD-24 VFD-24 LVFD-24 DWR-24-17/ -22/ -26/ -32
FD-35 PFD-35 VFD-35 LVFD-35 DWR-35-17/ -22/ -26



Rackrails
Rackrail
Art. #		 fits on
Art. #
DWR-RR10 DWR-10-17/ -22
DWR-RR12 DWR-12-17/ -22/ -26
DWR-RR16 DWR-16-17/ -22
DWR-RR18 DWR-18-17/ -22/ -26
DWR-RR21 DWR-21-17/ -22
DWR-RR24 DWR-24-17/ -22/ -26
DWR-RR35 DWR-35-22/ -26



DWR Seies

Easy Access Option

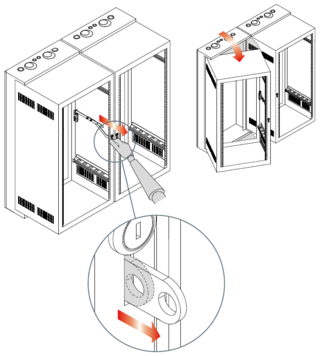

Minimum Clearance Latch


Front mounted latch saves valuable wall space by
allowing wall racks to be placed side-by-side,
in a corner, or wherever side clearence is an issue.
To open, simply pull the convenient front-mounted
handle. Unlike time-consuming threaded rods,
this unique latch provides keylocked security from
the front (keyed differently from optional front door).
Easy to install; required for seismic installations.,
Available only from
Middle Atlantic Products!
Art. #: DWRSR-ZL
