C5 Series

C5-Serie



Key Advantages


  • FAST. Get integration started fast - frames ship from stock

  • SAFE. Wood shipments are well protected from shipping damage

  • REPAIRABLE. If a panel gets damaged on jobsite, it can be easily replaced

  • FUTUREPROOF. Changing colors or styles in the future is easy

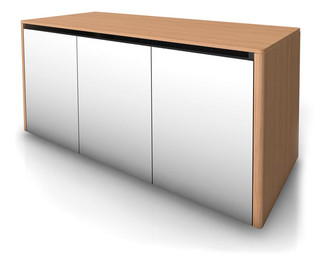

C5 Sideboards


1. Choose from 1, 2 or 3 bay models. Choose the Contemporary style, with clean lines and smooth hardware,
    or the Traditional style, with ogee curved edges and brushed hardware. Choose from the standard finishes shown
    below. It’s that easy!

2. The core structure of the credenza ships from stock at one of our five North American warehouses, so you can start
    integration immediately.

3. Outer surfaces, doors and trim ship separately to your shop or directly to the installation site and are quickly and
    easily fastened to cover all the metal and complete the installation.



700 mm Deep Credenza Racks
# of Bays 220V
Model		 Finishing-Kits
1 Bay IC5FF27-1
"PURE" & "CONTOUR"


2 Bays IC5FF27-2
3 Bays IC5FF27-3

Note: A complete system includes the frame & the finishing kit – when ordering a finishing kit the frame must also be ordered. **Frame does not come with finishing kit.

Documents

  Product Information              Technical Drawing  Technical

Accessoires



C5 PURE Finishing-Kits
Model  Figure Cover plate Side-
walls 		 Doors  # of
Bays 		 Order-
#
19 mm 25 mm  8 mm 19 mm 19 mm
PURE
1		   White
[Melamine]*		 – – White
[Melamine]		 White
[Melamine]		 1 Feld
2 Felder
3 Felder 		 36C5P-101
36C5P-201
36C5P-301
PURE
2		   Lava
[Melamine]*		 – – White
[Melamine]		 White
[Melamine]		 1 Feld
2 Felder
3 Felder		 36C5P-102
36C5P-202
36C5P-302
PURE
3		   – Beech
[veneer]*		 – White
[Melamine]		 White
[Melamine]		 1 Feld
2 Felder
3 Felder		 36C5P-103
36C5P-203
36C5P-303
PURE
4		   – Light Oak
[veneer]*		 – White
[Melamine]		 White
[Melamine]		 1 Feld
2 Felder
3 Felder		 36C5P-104
36C5P-204
36C5P-304
PURE
5		   – Walnut
[veneer]*		 – Lava
[Melamine]		 Lava
[Melamine]		 1 Feld
2 Felder
3 Felder		 36C5P-105
36C5P-205
36C5P-305
PURE
6		   – Oak Dark
[veneer]*		 – Lava
[Melamine]		 Lava
[Melamine]		 1 Feld
2 Felder
3 Felder		 36C5P-106
36C5P-206
36C5P-306
PURE
7		   – – White
[Glass] ²		 White
[Melamine]		 White
[Melamine]		 1 Feld
2 Felder
3 Felder		 36C5P-107
36C5P-207
36C5P-307
²Glass versions can not be combined with monitor brackets
All doors are with door lock



Dimensions
Series Hight Width
1 Bay 		 Width
2 Bays 		 Width
3 Bays 		 Depth
PURE - Series 751 mm 585 mm 1133 mm 1969 mm 646 mm
CONTOUR - Series  764 mm 625 mm 1171 mm 1734 mm 646 mm





C5 CONTOUR Finishing-Kits
Model  Figure Cover plate Side-
walls 		 Doors  # of
Bays 		 Order-
#
16 mm 8 mm  39 mm 19 mm
CONTOUR
9		   Beech
[veneer]		 – Beech
[veneer]		 White
[paint]		 1 Bay
2 Bays
3 Bays		 36C5C-109
36C5C-209
36C5C-309
CONTOUR
10		   Light Oak
[veneer]		 – Light Oak
[veneer]		 White
[paint]		 1 Bay
2 Bays
3 Bays		 36C5C-110
36C5C-210
36C5C-310
CONTOUR
11		   Walnut
[veneer]		 – Walnuß
[veneer]		 Black
[paint]		 1 Bay
2 Bays
3 Bays		 36C5C-111
36C5C-211
36C5C-311
CONTOUR
12		   Oak Dark
[veneer]		   Oak Dark
[veneer]		 Black
[paint]		 1 Bay
2 Bays
3 Bays		 36C5C-112
36C5C-212
36C5C-312
CONTOUR
13		   – White
[Glass] ²		 White
[paint]		 White
[paint]		 1 Bay
2 Bays
3 Bays		 36C5C-113
36C5C-213
36C5C-313
CONTOUR
14		   – White
[Glass] ²		 Beech
[veneer]		 Beech
[veneer] 		 1 Bay
2 Bays
3 Bays		 36C5C-114
36C5C-214
36C5C-314
CONTOUR
15		   – White
[Glass] ²		 Light Oak
[veneer]		 Light Oak
[veneer]		 1 Bay
2 Bays
3 Bays		 36C5C-115
36C5C-215
36C5C-315
CONTOUR
16		   – Black
[Glass]²		 Black
[paint]		 Black
[paint]		 1 Bay
2 Bays
3 Bays		 36C5C-116
36C5C-216
36C5C-316
CONTOUR
17		   – Black
[Glass]²		 Walnut
[veneer]		 Walnut
[Furnier]		 1 Bay
2 Bays
3 Bays		 36C5C-117
36C5C-217
36C5C-317
CONTOUR
18		   – Black
[Glass]²		 Oak Dark
[paint]		 Oak Dark
[paint]		 1 Bay
2 Bays
3 Bays		 36C5C-118
36C5C-218
36C5C-318
Optional door locks 1 Bay
2 Bays
3 Bays		 36C5C-L1
36C5C-L2
36C5C-L3





Dimensions
Series Height Width
1 Bay 		 Width
2 Bays 		 Width
3 Bays 		 Depth
PURE - Series 751 mm 585 mm 1133 mm 1969 mm 646 mm
CONTOUR - Series  764 mm 625 mm 1171 mm 1734 mm 646 mm



C5 Single and Dual Large Format Monitor Mounts

Now you can easily mount large format monitors directly to C5 Series credenzas to simplify your AV installations. Eliminates wall mounting and cable routing issues with built-in cable pathways.

• Accommodates most screens from 42” to 65” (dual) or 70” (single). Larger sizes available custom - please call
• Monitor height is adjustable and easy to level using the provided markings
• Optional camera mounts are ideal for videoconferencing systems. Cameras can be mounted above or below single monitors, or between dual monitors. Mounts are fully adjustable – choose from a large or small platform to match your camera unit size
• Includes cable clips for neat cable management into the credenza racks below
• Durable black powder coat finish


Part. # Describtion
C5MM1-4270S fits 42” to 70” single monitor, accepts optional camera mounts
C5MM1-4255D fits 42” to 55” dual monitors, accepts optional camera mounts
C5MM1-5665D fits 56” to 65” dual monitors, accepts optional camera mounts



C5 Universal Camera Shelves
Part. # Describtion Size (mm)
C5CMTB-88  mounts to top or bottom of screens 305 x 305
C5CMTB-128  mounts to top or bottom of screens 204 x 305
C5CMM-88  mounts between dual screens 305 x 305



The new Depth Extender Kit is field-installable and extends the rear depth of any single bay of any standard depth C5 Credenza model to accommodate deeper components and their cables. The extender adds nearly 72mm to the frame’s useable depth (while staying within the overall depth of the wood surface) and accommodates the unit’s standard rear panel. Fits all models and installs with an included wrench.



Part. #
C5-EXT*
*Fits standard depth C5 only
