dahua – Thermal Temperature Monitoring Solution

Efficient, Visible, Real-Time Thermal Temperature Monitoring

Thermal Temperature Monitoring technology enables quick detection of elevated skin temperatures. Thermal imaging equipment can easily be installed and implemented in environments such as airports, hospitals, clinics, office buildings, cruise ships, and any large public gathering location.

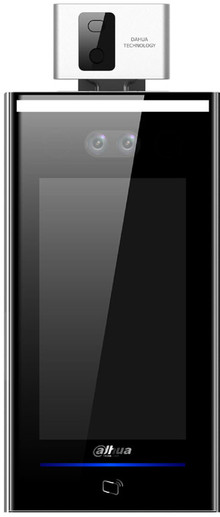

Thermal Temperature Station



The Dahua Thermal Temperature Station offers a compact, economical and easily deployed solution for monitoring human skin temperature. Install and implement the station to detect elevated skin temperature in environments such as hospitals, clinics, office buildings, and retail locations.

The Solution should not be solely or primarily used to diagnose or exclude a diagnosis of COVID-19 or any other disease. Elevated body temperature should be confirmed with secondary evaluation methods (e.g., an NCIT or clinical grade contact thermometer). Users, through their experience with the Solution in the particular environment of use, should determine the significance of any fever or elevated temperature based on the skin telethermographic temperature measurement. Visible thermal patterns are only intended for locating the points from which to extract the thermal measurement.



Technical Data

System



Main Processor

Embedded

Internet Protocol

IPv4, RTSP, RTP, TCP, UDP, P2P

Interoperability

ONVIF, CGI, SDK Support

Status Indicator

Red: Error
Green: Normal Operation
Blue: Device Working

Video



Sensor

Two (2) 1/2.8-in. 2 MP CMOS Sensors

Wide Dynamic Range

120 dB

Illumination



Auto White Light
Auto IR

Display

7-in. Screen

Screen Type

Capacitive

Resolution (H x V)

600 pixels by 1024 pixels

Temperature Monitoring



Area

120 pixels x 90 pixels

Visual Angle

50°

Monitoring Range

30° C to 50° C

Ambient Operating Range

16° C to 32° C

Time

0.2 s

Accuracy

0.1° C

Error

±0.5° C

Distance

0.30 m to 1.80 m

Height
at 0.50 m
at 0.50 m


1.40 m to 1.85 m
1.35 m to 2.0 m

Functions



Access Rules

Temperature Threshold
Face Mask Detection

Interface



Ethernet

One (1) 1000 Mbps Port, RJ-45
One (1) 10/100 Mbps Port, RJ-45

RS485

One (1) Port

RS232

One (1) Port

Wiegand

One (1) Port, Input or Output

USB

Two (2) USB 2.0 Ports

Alarms



Input

Two (2) Switches

Output

Two (2) Relays
